The Olympus CX23 series microscopes have become our customers’ most popular training microscopes over the past 2 years! Olympus offers these microscopes with economical LED lighting technology!
User-friendly microscope for teaching
The CX23 microscope is specifically designed to streamline microscopy education workflow and therefore requires minimal configuration.

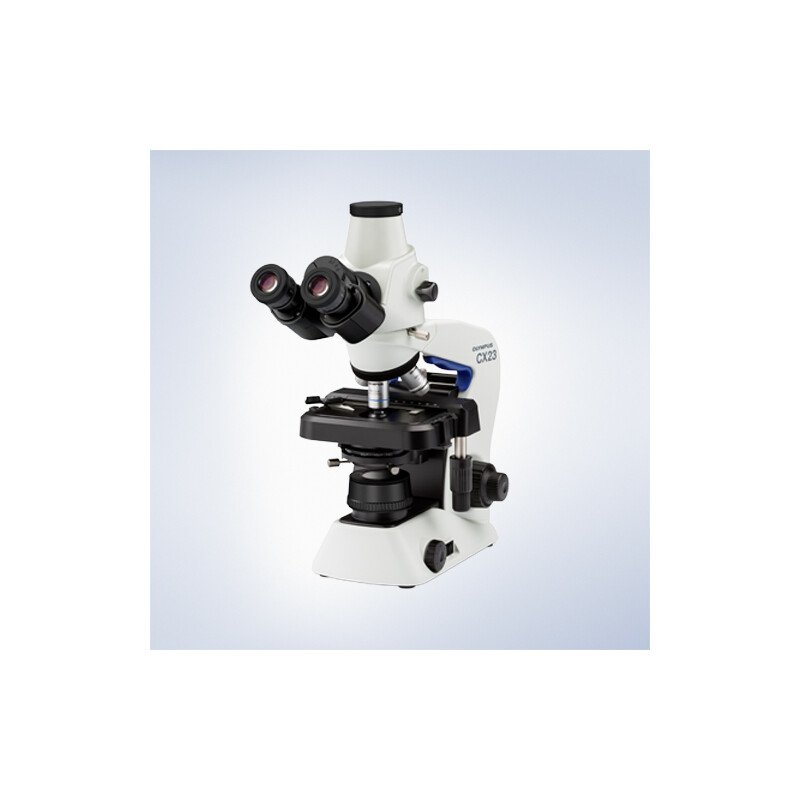

Upright microscope set for transmitted light observations with photo tube
- with integrated LED lighting
- 4x objective turret
- Cross table (120 x 132 mm, travel range 76 x 30 mm)
- right-hand, low-lying table drive
- Holder for a standard preparation
- Abbe condenser, NA 1.25
- complete focus range 15 mm, fine adjustment 300 μm/rotation
- Trinocular tube with two eyepieces, FN 20
- Selection of the beam path (eyepiece/camera port = 0/100 or 100/0)
- Diopter adjustment on both eyepieces
- Viewing angle of 30°
- Eye relief from 48 to 75 mm
- Plan 4x, NA = 0.1, AA = 27.8 mm, DK = –
- Plan 10x, NA = 0.25, AA = 8 mm, DK = –
- Plan 40x, NA = 0.65, AA = 0.60mm, DK = 0.17
- All lenses and eyepieces have an anti-fungal coating
Components included:
- CX23RTFS2-1-2 microscope stand (N5731300)
- Dust cover (038159)
- UYCP Power Cable (035425)
